You have a renovation to plan, a permit to file, or a tenant improvement to scope, and the building’s original construction documents are either missing, outdated, or simply wrong. Before any design work can start, you need accurate documentation of existing conditions. In California, that means as-built drawings. The question most owners, architects, and GCs ask first: what does this actually cost, and what drives the price up or down?

2026 Pricing Snapshot

In California, how much as-built drawings cost depends primarily on building size, complexity, and the deliverable format you need. Residential projects typically run $2,500 to $9,000. Commercial projects range from $3,500 to $55,000 or more, depending on square footage and whether you need 2D CAD, a Revit BIM model, or full MEP documentation.

 LiDAR-based 3D laser scanning, which delivers verified accuracy to plus or minus 2mm, generally costs more upfront than manual measurement but eliminates the field conflicts, rework, and RFIs that drive up total project cost.

What Drives As-Built Drawing Costs in California

As-built drawing pricing is not a single number. It is the sum of several variables, and understanding each one helps you budget accurately and avoid being surprised when quotes come in at opposite ends of the range.

1. Deliverable Format: The Biggest Cost Variable

The deliverable format you need does more to determine price than any other factor. A basic PDF floor plan and a fully parametric Revit model of the same building are not comparable products. They should not cost the same, and they do not.

The three main output formats, in ascending order of cost and capability, are:

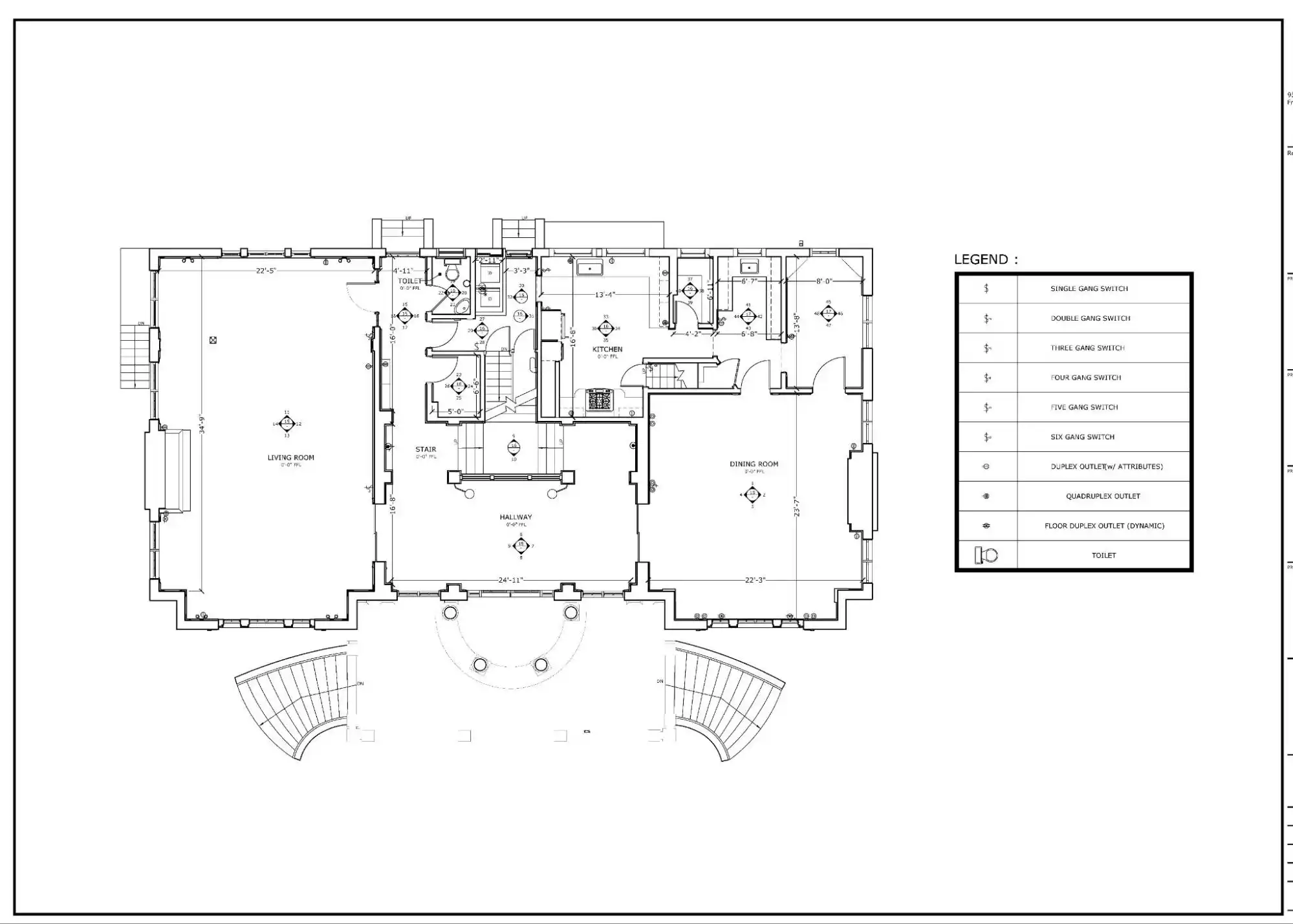

2D CAD Drawings (.dwg)

Floor plans, elevations, and sections produced in AutoCAD. Best for permit submittal, renovation planning, and standard design coordination. Most cost-effective option for straightforward projects.

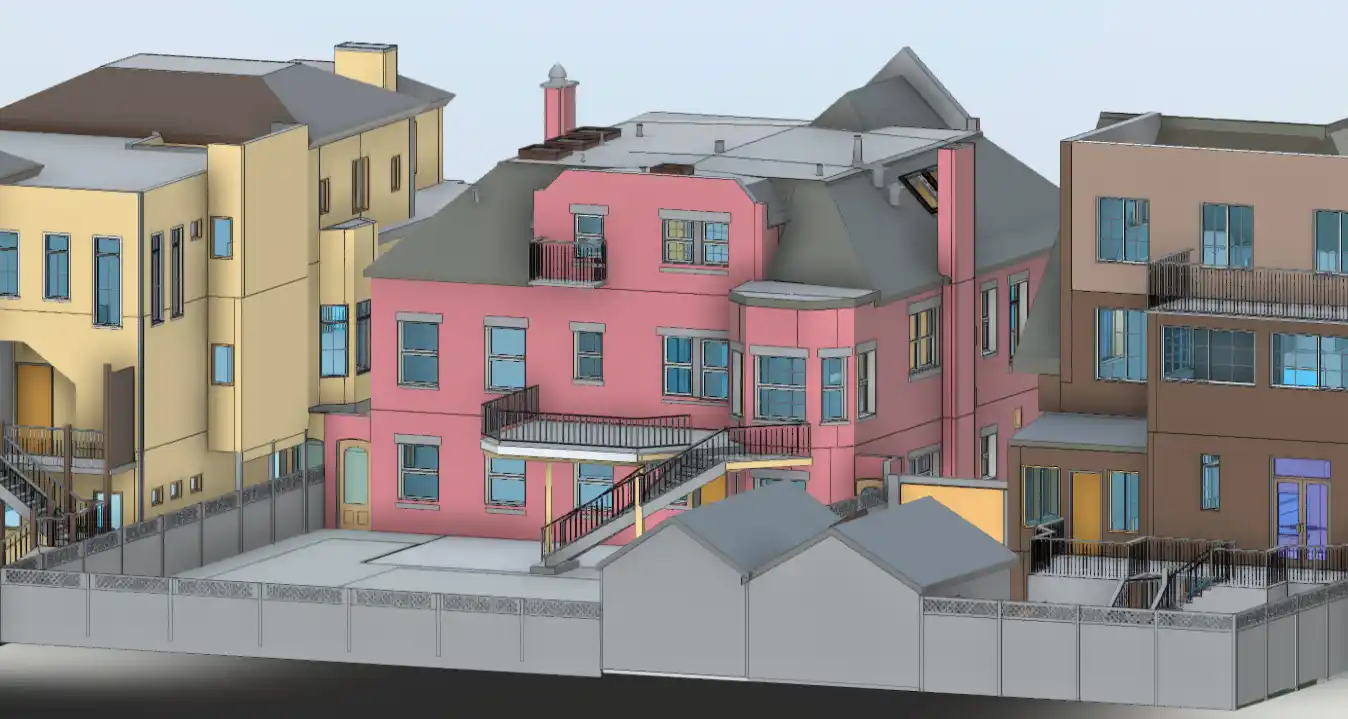

3D Scan-to-BIM (Revit)

A fully parametric building information model built from point cloud data. Required for major renovations, complex MEP coordination, and projects where the design team needs a live model rather than flat drawings.

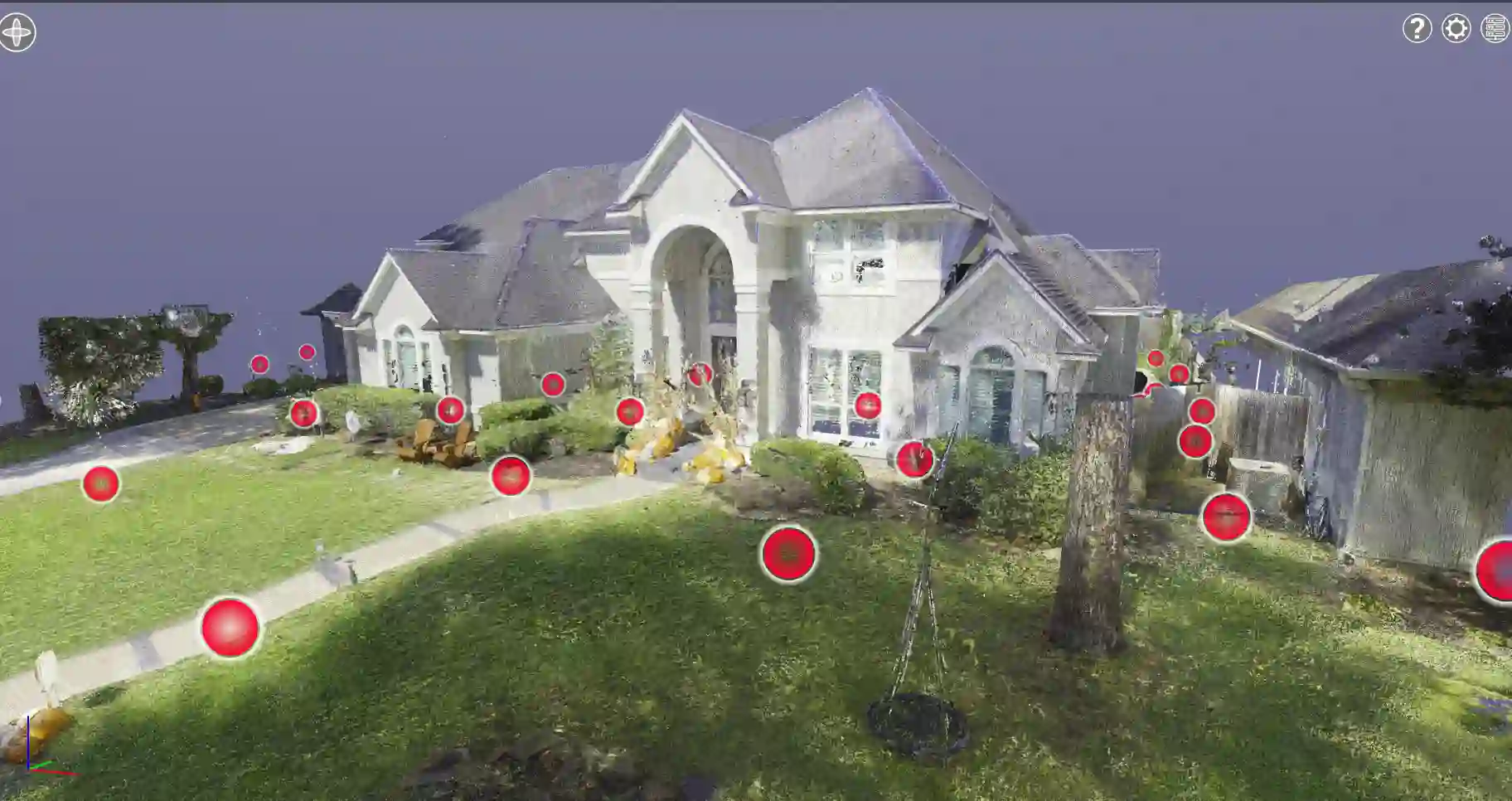

Point Cloud Delivery

The raw scan data, registered and delivered without drafting. Useful when the client has in-house modeling capacity or needs the data for a specialized analysis.

Each step up in deliverable format requires more labor, more processing time, and a higher level of technical expertise. A project that costs $4,000 for 2D CAD may cost $12,000 to $18,000 for a Revit LOD 300 model of the same building.

2. Square Footage and Building Size

Larger buildings take longer to scan and longer to draft. Field time, scanner setups, and CAD production hours all scale with size.

Per-square-foot rates are useful as a budgeting benchmark for mid-size projects in the 5,000 to 30,000 SF range, but they break down at the extremes. A 1,000 SF space costs more per square foot than a 20,000 SF building because mobilization, scanner setup, and file processing are largely fixed costs regardless of size.

3. Building Complexity

Curved walls, multi-story layouts, irregular floor plates, above-ceiling MEP systems, and historic structures all add time and cost.

A straightforward single-story retail shell is a very different project from a 1920s commercial building with hidden plumbing chases and non-standard ceiling heights. Complexity is why experienced providers ask for a building address and photos before quoting, rather than generating a number from square footage alone.

4. Level of Detail Required

For Scan-to-BIM projects, the Level of Development (LOD) directly controls cost.

• LOD 200 covers generic elements and basic spatial coordination.
• LOD 300 includes specific, dimensionally accurate elements suitable for design development.
• LOD 400 adds fabrication-ready detail, typically required for complex MEP systems.

Each LOD increase roughly doubles the modeling effort.

5. Access Constraints and Site Conditions

Occupied buildings, security requirements, phased access schedules, and the need to document above-ceiling systems all add cost.

Above-ceiling documentation, where MEP systems need to be exposed and scanned, typically adds 20% to 40% to the base project cost.

A building that can be accessed in a single continuous day costs less to document than one requiring multiple mobilizations.

2026 As-Built Drawing Cost Ranges in California

The tables below reflect market rates for professionally laser-scanned as-built documentation in California, including Los Angeles, San Francisco, and surrounding markets. These are project-based ranges, not per-square-foot minimums applied without reviewing the actual scope.

Cost by Project Type

Project Type	Typical Price Range	Notes
Small residential (under 2,000 SF)	$2,500 to $5,000	2D CAD floor plans, basic elevations
Mid-size residential (2,000 to 5,000 SF)	$4,000 to $9,000	Full drawing set, may include MEP
Small commercial (under 3,000 SF)	$2,500 to $5,500	Retail, office, tenant space
Mid commercial TI (3,000 to 15,000 SF)	$3,500 to $8,000	2D CAD or Revit LOD 200
Large commercial (15,000 to 50,000 SF)	$8,000 to $30,000	Full architectural set, Revit LOD 300
Complex or large-scale buildings	$10,000 to $55,000+	Multi-floor, MEP, historic, hospitality

Cost by Deliverable Format (Per Square Foot)

Deliverable Format	Typical Per-SF Rate
2D CAD drawings (AutoCAD .dwg)	$0.15 to $0.35 per SF
Revit BIM, LOD 200	$0.15 to $0.25 per SF
Revit BIM, LOD 300	$0.25 to $0.45 per SF
Revit BIM with full MEP, LOD 400	$0.45 to $0.75 per SF
Complex commercial (full MEP documentation)	$0.75 to $2.00 per SF

Note: Per-SF rates are most reliable for mid-size projects (5,000 to 30,000 SF). For accuracy, always request a fixed-fee proposal based on the actual scope.

Why California Projects Often Cost More Than National Averages

California’s construction market operates at a premium relative to most other states, and as-built documentation pricing reflects that. Several factors specific to the state push costs higher.

Labor and Overhead Costs

Field technicians, CAD drafters, and BIM modelers command higher wages in California metros, particularly in Los Angeles, San Francisco, and the Bay Area.

Overhead, insurance, and licensing costs for professional services firms are also elevated. These are not arbitrary premiums; they are the direct result of California’s cost of doing business, and they are priced into every legitimate quote you receive.

Permitting Complexity and Title 24 Requirements

California’s building code environment is among the most demanding in the country.

The 2025 California Building Standards Code, which took effect January 1, 2026, introduced new energy performance requirements, stricter MEP ventilation standards, and updated EV infrastructure mandates. Permit applications submitted on or after that date must demonstrate full compliance with the new code.

For renovation and tenant improvement projects, this means the as-built documentation set must be detailed enough to support Title 24 energy compliance analysis, MEP system verification, and ADA accessibility review.

A basic floor plan is often not sufficient. Projects requiring stamped architectural and structural drawings from LADBS or equivalent documentation from other California jurisdictions need a more comprehensive as-built package. That increases both scope and cost.

Urban Site Complexity

Buildings in Los Angeles, San Francisco, and San Jose frequently involve multi-story layouts, occupied tenant floors, shared building systems, and access restrictions that add mobilization time.

Historic buildings, which are common in California’s older urban cores, require additional care in documentation and often involve non-standard construction that takes longer to capture accurately.

The Real Cost of Skipping Accurate As-Built Documentation

The price of getting as-built drawings done right is easy to see on a quote. The cost of getting them done poorly, or not at all, is buried in the project budget until it is not.

Construction rework caused by inaccurate or missing existing conditions documentation is one of the most consistent budget killers in AEC.

According to FMI’s research on construction industry trends, rework accounts for approximately 5% of total project cost across the industry, with documentation failures cited as a primary driver.

On a $2 million California commercial renovation, that is $100,000 in preventable costs.

Field conflicts discovered mid-construction, where a new HVAC duct cannot fit where the drawings show, because the existing structure was never accurately measured, generate RFIs, change orders, and schedule delays.

A single significant field conflict on a commercial TI project can cost $15,000 to $50,000 in rework, contractor downtime, and redesign fees. That number typically exceeds the entire cost of a professional as-built documentation package.

Manual measurement, which is still offered by some providers, introduces dimensional errors of 1/4 inch to several inches, depending on the measuring method and the condition of the building.

Those errors compound across a drawing set.

LiDAR scanning delivers verified accuracy to plus or minus 2mm, which is the difference between a drawing set that the design team can rely on and one they have to verify in the field.

What Is Included in a Professional As-Built Drawing Package

Scope varies between providers, but a complete professionally scanned as-built set for a California commercial or residential project typically includes:

• Floor plans: Dimensioned layouts of every floor, showing walls, doors, windows, stairs, and fixed elements to verified accuracy.
• Reflected ceiling plans: Ceiling heights, grid layouts, light fixture locations, and accessible MEP penetrations.
• Exterior elevations: All facade faces with accurate dimensions, fenestration, and material callouts.
• Building sections: Vertical cuts through the building showing floor-to-floor heights, structural elements, and MEP chases.
• Interior elevations: Wall conditions inside key rooms, often required for kitchen, bathroom, and storefront documentation.
• MEP documentation: Mechanical, electrical, and plumbing system layouts, above-ceiling conditions, and equipment locations. Typically required for major renovations and tenant improvements.

Scan-to-BIM projects also deliver a Revit model at the specified LOD, which the design team can work in directly.

See the full scope of our Scan-to-BIM services for LOD options and workflow details.

How to Get an Accurate As-Built Drawing Quote in California

Vague requests produce vague quotes.

Providers who quote without reviewing the actual project are either guessing or using a per-square-foot formula that will not hold when the scope is finalized.

To get a quote that reflects the real as-built drawing pricing California projects require, provide the following information:

• Building address and total square footage: Allows the provider to assess location, access, and rough scope.
• Number of floors and building age: Multi-story and older buildings have higher complexity and cost.
• Required deliverables: 2D CAD, Revit BIM model, point cloud, or a combination. Specify the LOD for BIM projects.
• Scope of documentation: Full building or specific zones. Interior only, or including exterior elevations and MEP systems.
• Access constraints and timeline: Occupied buildings and restricted access schedules affect scheduling and cost. Rush delivery adds a premium.

At LiDAR Precise Plans, we return quotes within 24 hours. All quotes are fixed-fee, project-based, and built from a review of the actual scope, not a formula applied to square footage.

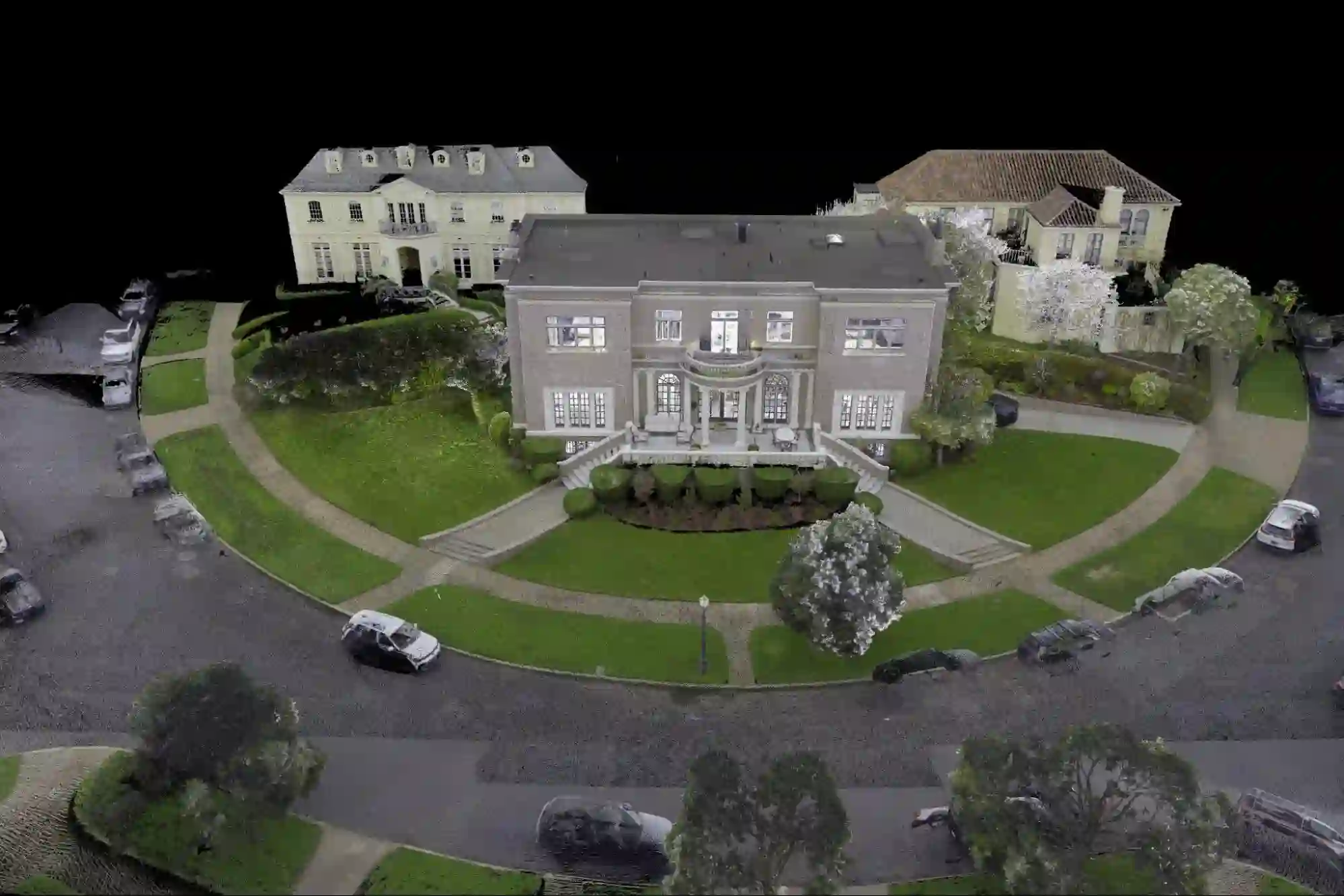

How LiDAR Precise Plans Handles California As-Built Projects

We have documented more than 4,200 buildings across California markets, including Los Angeles, San Francisco, the Bay Area, and surrounding jurisdictions.

Every project starts with professional-grade LiDAR scanning using Leica and Faro equipment, capturing verified field conditions at plus or minus 2mm accuracy.

That scan data becomes the foundation for every deliverable we produce, whether that is a 2D CAD set in AutoCAD, a Revit BIM model at LOD 200 to 350, or a registered point cloud delivered directly to your team.

Our standard turnaround is 5 to 14 business days, depending on the scope.

We serve residential, commercial, hospitality, retail, industrial, and historic preservation projects across California.

Our deliverables are formatted for direct use in AutoCAD and Revit workflows, and every set is reviewed before delivery.

If you are pricing a California renovation, tenant improvement, permit submittal, or facility documentation project, we can give you a fixed-fee quote within 24 hours.

No formulas. No estimates that change when the scope is reviewed.

Visit our as-built drawings service page or reach us directly at 888-543-2711.

Plan Smarter: What LiDAR-Accurate As-Built Drawings Do for California Projects

The cost of as-built drawings in California is real, visible, and easy to compare on a quote sheet.

The cost of inaccurate existing conditions documentation is harder to see until it shows up as a change order, a failed plan check, or a field conflict that stops work.

Accurate as-built documentation, produced from professional LiDAR scanning, eliminates the second category of cost.

For California projects operating under the 2025 Building Standards Code, with its tighter MEP, energy, and accessibility requirements, that accuracy is not optional.

Get your “How much do as-built drawings cost in California?” question answered with a real quote.

Call 888-543-2711 or visit us for a fixed-fee proposal returned within 24 hours.

We document California buildings from Los Angeles to San Francisco to the Bay Area, with verified LiDAR accuracy on every project.
